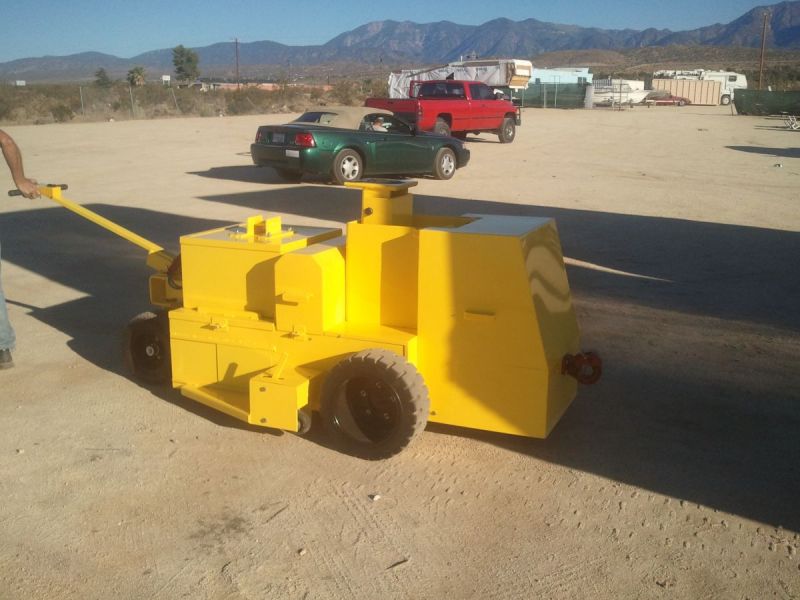

Motorized Electric Tractor Trailer Mover Tug - heavy duty lift dolly

Model Number: HD7500 TTM-24 / HD7500 TTM

w/o battery pack and lift device running time

Lift Capability 20,000   Pull/Push Capability 40,000 lbs.

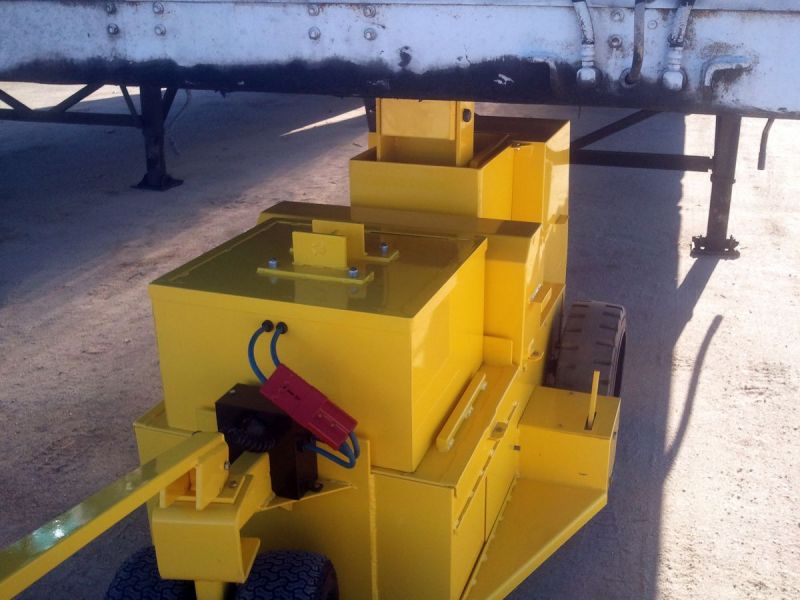

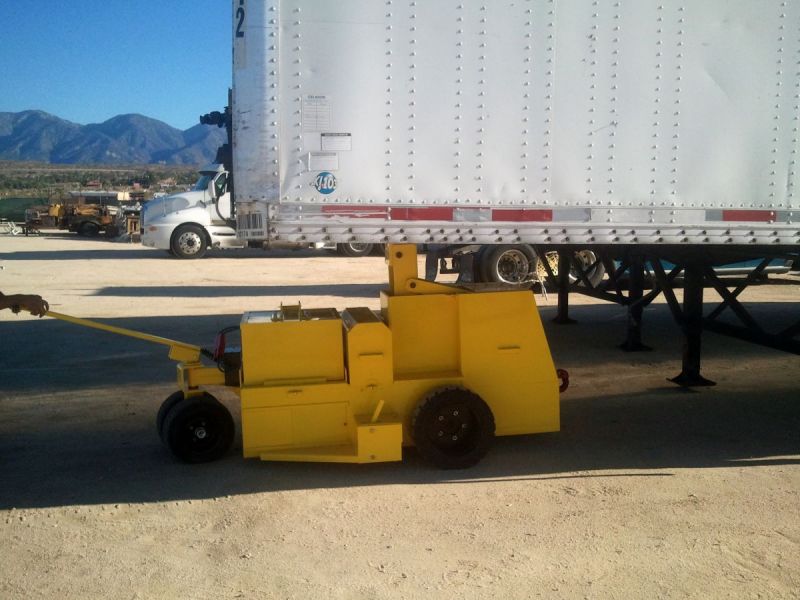

The Motorized Electric Tractor trailer mover tug is designed to maneuver Trailers into tight positions effortlessly and economically.

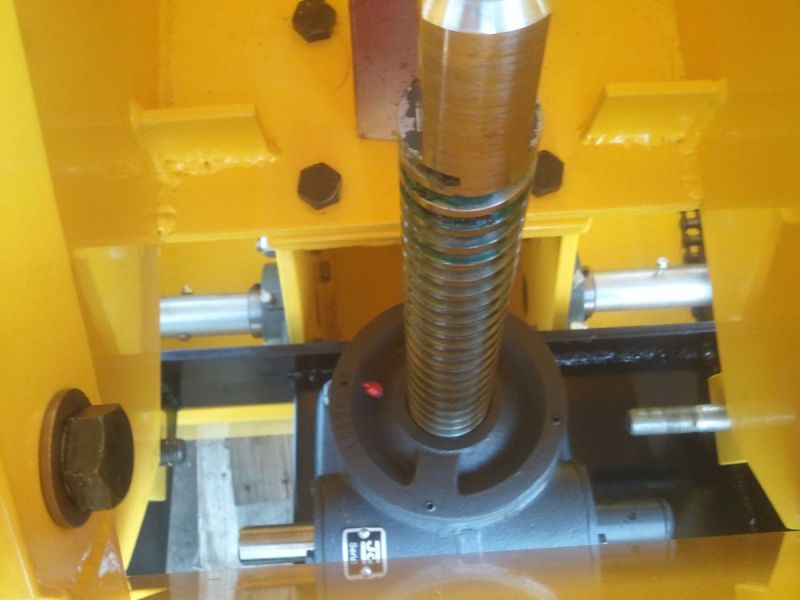

The HD7500 Powered Trailer Mover is engineered for moving king pin covered and equipment trailers, as well as campers up to 40,000 lbs. The Powered Trailer Mover has a 20,000 lbs power actuator lift kit designed to lift up king pin, ball, or pintle hitch type of trailer connections. The most common environment requiring a Trailer HD7500 Trailer Mover are semi tractor-trailer manufactures, RV and camper dealerships, military bases, and vehicle maintenance locations at government repairs centers. The Powered Trailer Mover where constant movement of king pin wheeled equipment in areas typically too confined for conventional fork trucks or large tow vehicles. The Trailer Movers power, size, and price tag make it a more effective and affordable alternative or risking a possible injury to employees the equipment.

This unit is designed to work a 24 hr. a day shift. The Cart Mule® 24 is ideal for facilities that do not close and in need of equipment 24hrs a day. The Cart Mule® 24 is always ready when you need it. Equipped with 2 battery packs and an optional lift dolly and charging table (recommended)

MECHANICAL SPECIFICATIONS:
DIMENSIONS LENGTH...72.2" WIDTH… 50.0" HEIGHT…34.3" (Less handle and tow bar)
TIRES (2) FRONT.......16"DIA. (4) REAR.......18" DIA. PNEUMATIC
WEIGHT 2,050 lbs.
GROUND CLEARANCE 5.0" TIRES MOUNTED ON SIDES FOR LOWEST CG (center of Gravity) TO ELIMINATE TIP OVER OF UNIT.
WORKING LOAD MAX 40,000 LBS AT 1.5 MPH CAN BE PUSHED OR PULLED IN NORMAL CONDITIONS. THE MAX LBS MAY BE LESS DEPENDING ON SURFACE CONDITIONS. OPTIONAL DIFFERENT SPEED SETTINGS DONE THROUGH GEARING AVAILABLE.
DUTY CYCLE 4 TO 5  HOURS UNDER NORMAL CONDITIONS. SURFACE GRADE AND TEMPERATURE MAY AFFECT DAILY OPERATING TIME.
BRAKING: BRAKES TYPES; 1.) DOUBLE DYNAMIC BRAKING FROM MOTOR 2.) DOUBLE STATIC GEAR REDUCTION BRAKING, DOUBLE AUTOMATIC BRAKING SINGLE START TYPE LOCKING FORWARD & BACK DRIVE GEAR REDUCER

SYSTEM DRIVER: MOTORS 2 U.L., CSA, ISO. WITH THERMAL OVERLOAD PROTECTION.
REAR WHEEL DRIVES TWO INDEPENDENT DRIVE SYSTEMS. COMPLETE DRIVE SYSTEM FULLY SHIELDED FROM ENVIRONMENTAL HAZARDS

OPERATING SPECIFICATIONS:
MANUAL OPERATION: SPEED FACTORY SET; FORWARD DIRECTION ; REVERSE DIRECTION FOUR BUTTON
WEATHER RESISTANT KEY PAD SECURED TO HANDLE ASSEMBLY. FORWARD SPEED BUTTON #1= 1 MPH,
FORWARD BUTTON #2= 2 MPH FORWARD BUTTON #3=3 MPH, REVERSE BUTTON #1= 1MPH
