MID-SIZE CART MULE®



Maximum Load capacity: 10,000 lbs

Duty Cycle: 13hr

Recharge from full discharge: 8 to 10 hr

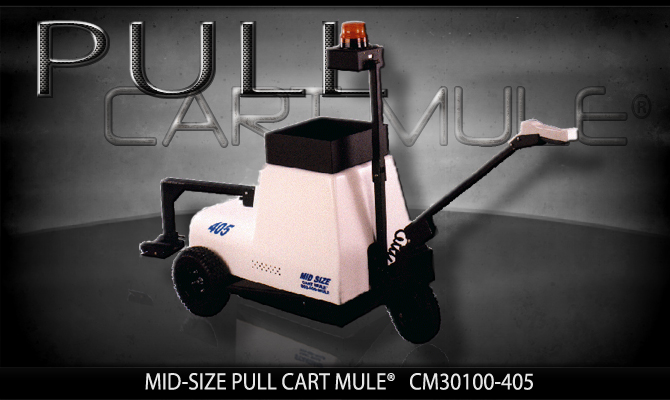

 Mid-size-pull-cart-mule-cm30100-405-NAME

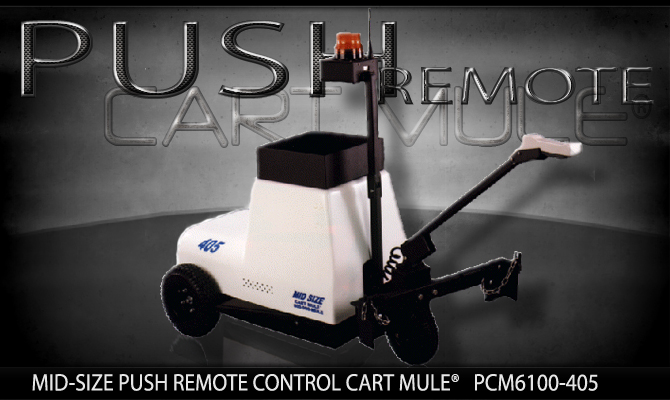

  MID-SIZEpush-remote-cart-mule-pcm6100-405-NAME



  MID-SIZE-push-remote-pull-cart-mule-p.pcm6200-405-NAME


SPECIFICATIONS/FEATURES FOR MODELS:

CM30100-405 NON REMOTE/ PCM6100-405/ P/PM6200-405THESE MODEL NUMBERS MEETS OR EXCEEDS Underwriters Laboratories CLASSIFICATION 583



MECHANICAL SPECIFICATIONS:



STATIC:

DIMENSIONS LENGTH....42" WIDTH..... 28" HEIGHT............. 47" (Less handle and tow bar)

TIRES (1) FRONT.......10"DIA. (2) REAR.......12" DIA. PNEUMATIC TIRE OPTIONAL FOAM FILLED TIRES

WEIGHT 590 lbs.

GROUND CLEARANCE 3.0" TIRES MOUNTED ON SIDES FOR LOWEST CG (center of Gravity) TO ELIMINATE TIP OVER OF UNIT.

WORKING LOAD MAX CARTS TO BE PUSHED OR PULLED IS 45 IN NORMAL CONDITIONS. THE MAX QUANTITY MAY BE LESS DEPENDING ON PARKING LOT CONDITIONS. PUSH OR PULL LBS 10,000 MAX

DUTY CYCLE 13 HOURS UNDER NORMAL CONDITIONS. SURFACE GRADE AND TEMPERATURE MAY AFFECT DAILY OPERATING TIME.

BRAKING:

BRAKES TYPES; 1.) DYNAMIC BRAKING FROM MOTOR 2.) STATIC GEAR REDUCTION BRAKING, AUTOMATIC BRAKING SINGLE START LOCKING FORWARD & BACK DRIVE GEAR REDUCER



SYSTEMDRIVER:

MOTOR U.L., CSA, ISO. WITH THERMAL OVERLOAD PROTECTION, 24 VDC LARGER TYPE MOTOR. DIM 6.0 LENGTH 11.0  35 LBS 1800 RPM. DYNAMIC BRAKING TYPE PER U.L. 583 FURTHER MGF SPECIFICATIONS PROVIDED UPON REQUEST

REAR WHEEL DRIVE  DRIVE DIFFERENTIAL, WITH 1” INCH DRIVE SHAFT AXEL. COMPLETE DRIVE SYSTEM FULLY SHIELDED FROM ENVIRONMENTAL HAZARDS BY 7 GAGE (.19) STEEL PER U.L. 583



CONSTRUCTION SPECIFICATIONS:

FIBERGLASS OUTER ENCLOSURE, NOMINAL 0.1 INCH THICKNESS. FLAME RETARDANT ADDITIVES, ALUMINA TRIHYDRATE, AND DYDRATED ALUMINA. ENCLOSURE SECURED TO FRAME BY SCREWS. FIBERGLASS IMPACT TESTED, PER UL 583

FRAME POWDER COATED ALL STEEL 7 GAGE (.19)  CONSTRUCTION. SEVEN ½ INCH. (VENTILATION HOLES ON EACH SIDE TO ALLOW  POSSIBLE GAS PRODUCED DURING BATTERY CHARGING TO ESCAPE. PER UL 583) ¼ INCH STEEL MOUNTING PLATE FOR REDUCER. 1/8 INCH POWDER COATED STEEL SQUARE TUBING FOR HANDLE.



OPERATING SPECIFICATIONS:

MANUAL OPERATION:

SPEED FACTORY SET; FORWARD DIRECTION ; REVERSE DIRECTION FOUR BUTTON WEATHER RESISTANT KEY PAD SECURED TO HANDLE ASSEMBLY.FORWARD SPEED BUTTON #1= 1 MPH, FORWARD BUTTON #2= 2 MPH FORWARD BUTTON #3=3 MPH, REVERSE BUTTON #1= 1MPH

SIGNAL DEVICES FOR REMOTE UNIT OPTIONAL:   SAFETY HORN  AUTOMATIC BRAKE LIGHT  BEACON STROBE LIGHT, AMBER, 100,000 CANDLE POWER.

FM RADIO SYSTEM FOR REMOTE UNIT:  WATER RESISTANT FM REMOTE CONTROL TRANSMITTER.  AUTOMATIC SELF-PROGRAMMING REMOTE TRANSMITTER SECURITY CODE-255 POSSIBLE CODES 120 FOOT OPERATING RANGE MINIMUM AUTOMATIC ROLLING SECURITY CODE   FORWARD SLOW SPEED 1.0 MPH  FORWARD  FAST SPEED 3.0 MPH  FCC CERTIFIED.



ELECTRICAL SPECIFICATIONS:

OPERATING VOLTAGE  BATTERIES   SEALED GEL TYPE, UL RECOGNIZED, FAA APPROVED.





BATTERY AND CHARGING SYSTEM:

BATTERY CHARGER  GEL TYPE, UL/CSA, 120 VAC 60 HZ, AUTOMATIC SHUTDOWN WHEN BATTERIES HAVE BEEN FULLY CHARGED. RECHARGE TIME FROM NORMAL DISCHARGE APPROXIMATELY  8-10 HOURS.



SAFETY FEATURES:

WIRING EMPLOYED IN THE ASSEMBLY OF THE CART MULE IS LISTED R/C (AVLV2), 8 AWG WITH 5/64INCH. THICK INSULATION FOR BATTERY AND MOTOR CIRCUITS AND 22 AWG WITH 1/32 INCH THICK INSULATION FOR CONTROL AND SIGNAL CIRCUIT WIRING TESTED AND COMPLIES U.L 583

MOTOR U.L., CSA, ISO. WITH THERMAL OVERLOAD PROTECTION

CONTROLLER CE, SAFETY TESTED MEDICAL GRADE MICROPROCESSOR, PROGRAMMABLE SPEED FROM 0 TO 3 MPH SELF PROTECTING OVERLOAD SHUT OFF, SELF PROTECTING LOW BATTERY SHUT OFF. EMERGENCY OVERLOAD CURRENT LIMITING, PROGRAMMED SLOW ACCELERATION AND DECELERATION FOR OPERATOR SAFETY, FULLY PROGRAMMABLE MAXIMUM SPEED LIMIT. TESTED PER UL 583

BEACON STROBE LIGHT 100,00 CANDLE POWER

LIGHTTOWER ELEVATION AT EYE LEVELOPTIONAL, STROBE LIGHT, BREAK LIGHT, DIAGNOSTICS FAULT INDICATOR PANEL, FOR  REMOTE UNIT A EMERGENCY SHUT OFF SWITCH, AND WARNING HORN

OPTIONAL WARNING HORN FOR REMOTE UNIT IN MANUAL AND REMOTE

AUTOMATIC EMERGENCY STOP WHEN RELEASE OF FORWARD SPEED CONTROL BUTTON MANUAL AND REMOTE.

SECURITY SWITCH PREVENTS UNAUTHORIZED PERSONS FROM USING THE CART MULE, AND EMERGENCY REMOTE SHUT OFF SWITCH ON LIGHT TOWER .

DIAGNOSTIC FAULT INDICATOR LOW BATTERY DISPLAY PANEL. LOW BATTERY, BAD CONNECTION TO MOTOR, MOTOR HAS SORT CIRCUIT TO BATTERY CONNECTION, CONTROLLER FAULT, AND EXCESSIVE VOLTAGE TO CONTROLLER CAUSED BY POOR CONNECTION TO BATTERIES. TESTED PER UL 583

THIS CART MULE MODEL HAS BEEN TESTED AS A COMPLETE UNIT AND COMPLIES WITH U.L. 583



INDIVIDUAL REMOTE FM RADIO SECURITY PROGRAMMING.

ADDITIONAL FEATURES

WEATHER THE "CART MULE" WORKS WELL IN THE RAIN 0R SNOW.  (SPECIAL TIRES RECOMMENDED FOR USE IN SNOW OR ICE.)

PROVIDED WITH A U.L. SAFETY TESTED PRODUCT, OSHA COMPLIANT OPERATORS TRAINING PROGRAM WITH COURSE MATERIALS AND SAFETY TEST.

PARTS LIST.

U.S. PATENT # 5,573,078 PATENT PENDING FOREIGN PATENTS APPLIED FOR ENVIRONMENTALLY SAFE MADE IN THE U. S. A. U.L. FILE NON-ACTIVE# E168179 U.L. FILE # AU3611 EE
